Case Study

Self-Evolving Magentic Orchestration

Can a multi-agent system get better at a task without retraining its base model? A comparative study of memory, skill-library, and RL-based routing strategies, layered onto a frozen orchestration baseline, across 7 public benchmarks.

SMU — CS605 group project
SMU research, 7 benchmarks

The problem

A single LLM agent only produces text — it can't check its own work. Ask one model to localize a bug, edit the file, run the tests, and review the result, and there's no division of labour: a broken patch ships because nothing catches it. Orchestration splits those jobs across specialized roles with a manager that decomposes, routes, and replans — and critically, a tester and critic that verify before anything counts as done.

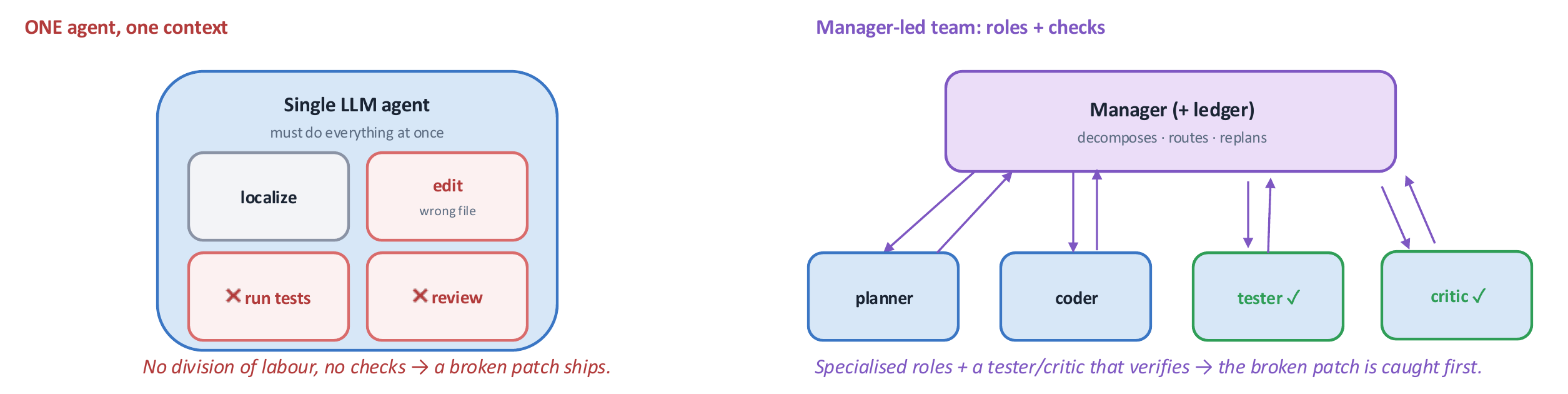

Diagram contrasting a single LLM agent trying to localize, edit, test, and review at once (no checks, broken patch ships) against a manager-led team of planner, coder, tester, and critic roles with verification
One agent has no checks on itself; a manager-led team with a tester and critic catches the broken patch before it ships.
  1. Orchestration produces actions, not just text. A single model answers; a team of agents executes, verifies, and recovers.
  2. Hard tasks don't fit in one context. Long-horizon work needs memory and re-planning across steps, not one pass.
  3. Specialization is engineerable. Prompts, tools, memory, planning, and evaluation each become a part of the stack that can be versioned and improved on its own.

Magentic orchestration, and where it stops

Magentic-One is a generalist multi-agent framework Microsoft released in 2024, designed to sit between two failure modes: leaving control entirely to the model (early CrewAI) and rigidly hard-coding the engineering flow (LangGraph). A manager workflow decomposes a task, assigns it across however many agents are registered, and checks a task-and-progress ledger before deciding whether to keep going or return a result.

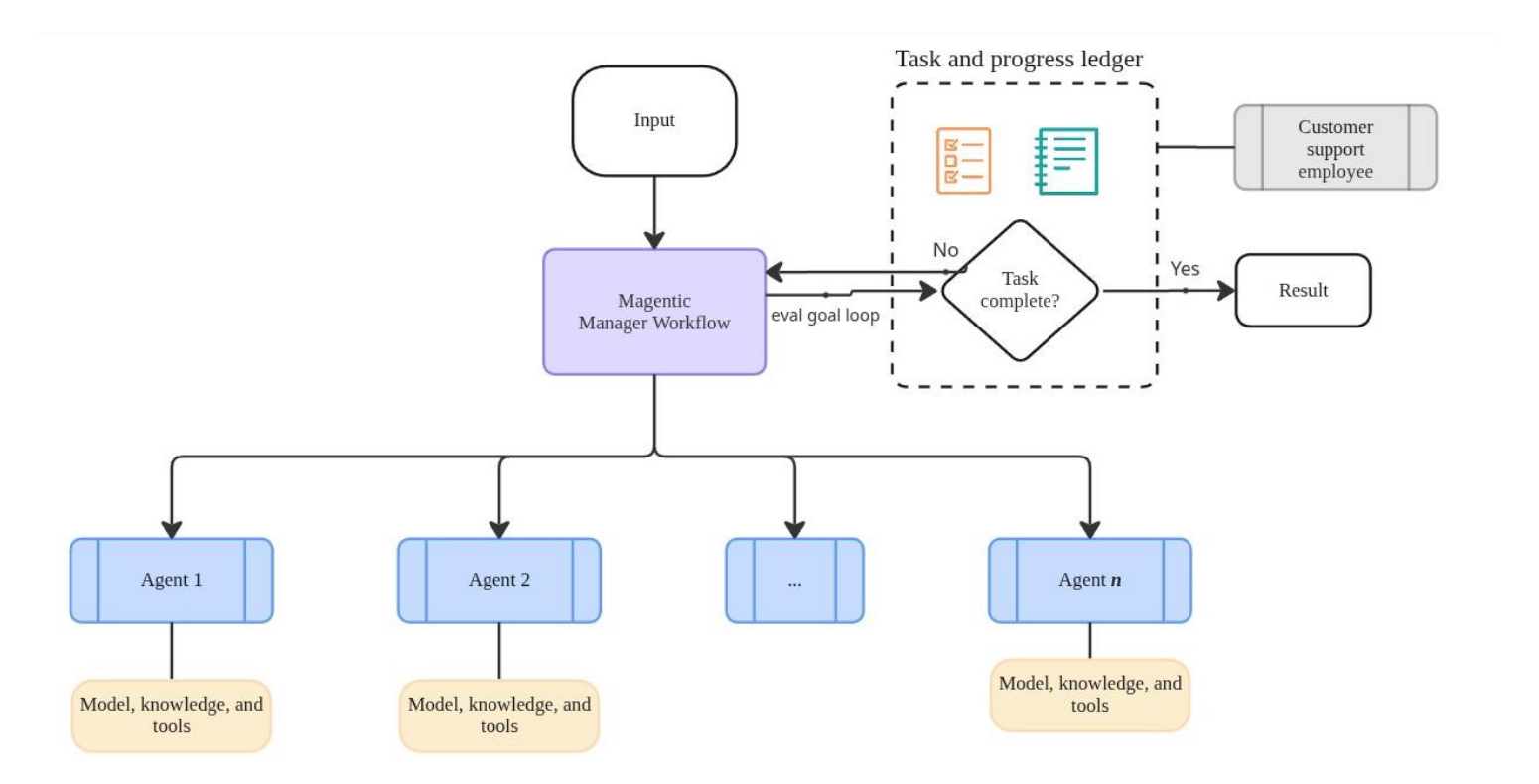

Magentic-One framework diagram: input feeds a Magentic Manager Workflow, which checks a task-and-progress ledger for task completion, loops back if not, and dispatches work across Agent 1..n, each with its own model, knowledge, and tools
Magentic-One: a manager workflow, a task/progress ledger, and however many specialized agents a task needs.

What it doesn't do is learn from having run before — it adapts dynamically within a task via the ledger, but the manager, the agents, and the underlying model are exactly the same on run one and run one thousand. That's the gap this project investigates: can the orchestration itself evolve without retraining anything underneath it?

Our baseline

Everything in the baseline is frozen across tasks — tools, prompt skeleton, decoding. The base model is MiniMax-M2.7, run through LangChain, with 8 specialized subagents (planner, coder, tester, critic, plus file_manager / researcher / memory / skill_writer) implemented on AgentOS for durable state. Every self-evolution strategy below plugs into this same frozen substrate, so any difference in results is attributable to the strategy, not to a different base system.

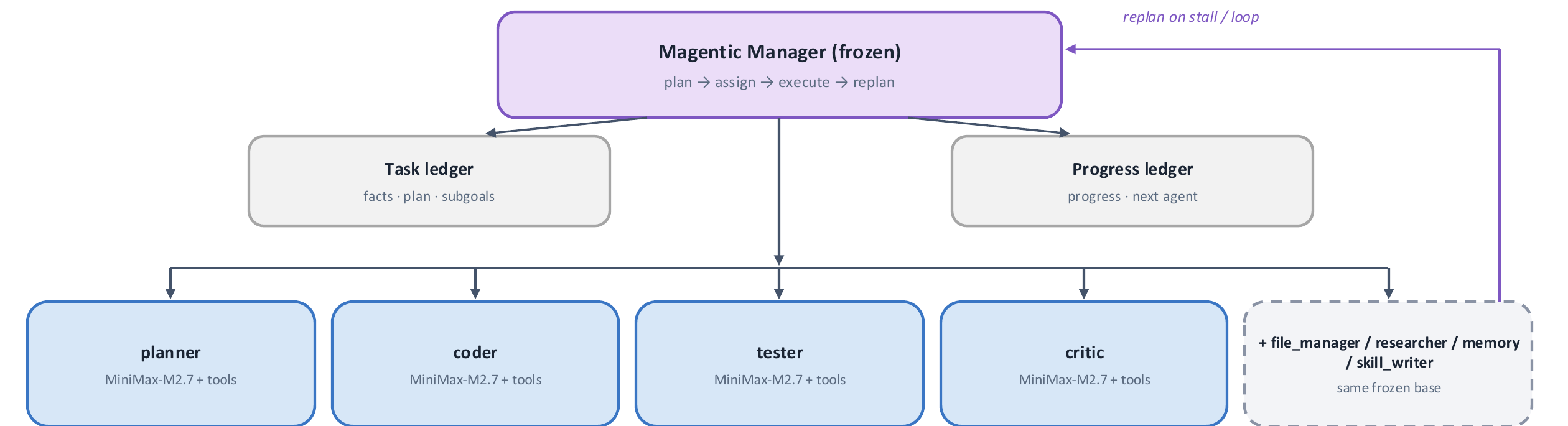

Baseline system diagram: a frozen Magentic Manager routes to Task and Progress ledgers and down to planner, coder, tester, critic, and auxiliary agents, all on the same frozen MiniMax-M2.7 base, with a replan-on-stall loop back to the manager
The frozen baseline every strategy below is layered onto — I built this orchestration layer and ran the baseline evaluations it's compared against.

Three strategies, one substrate

The design principle: hold everything fixed except the one thing being tested. Four conditions share the identical frozen manager, agents, tools, and base model — they differ only in which self-evolving strategy, if any, is layered on top, and each plugs into the manager's ledgers at a different natural seam.

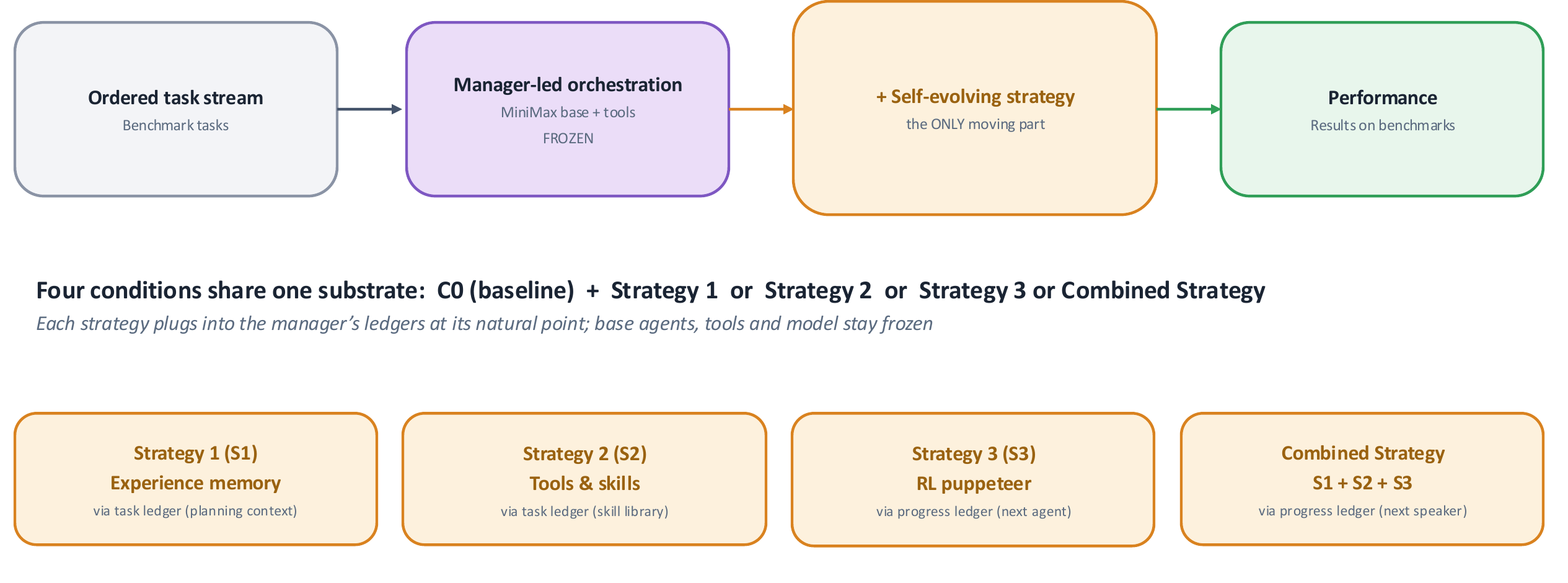

Diagram: an ordered task stream runs through frozen manager-led orchestration, then an optional self-evolving strategy (the only moving part), producing performance results. Four conditions share this substrate: C0 baseline, Strategy 1 (experience memory via task ledger planning context), Strategy 2 (tools and skills via task ledger skill library), Strategy 3 (RL puppeteer via progress ledger next agent), or Combined (S1+S2+S3 via progress ledger next speaker)
Four conditions, one frozen substrate — each strategy is the only moving part in its condition.

My part was building the Magentic orchestration layer and running the baseline evaluations every strategy below is measured against; each of the three strategies was led by a different teammate on the team.

Benchmarks

Seven public benchmarks split across single-pass reasoning (GSM8K, MATH, MMLU, GPQA, DROP) and multi-step execution (SWE-bench, GAIA) — each sampled for a mix of hard and easy instances rather than an arbitrary slice.

GSM8K — 100 samples
Hard (70): ≥6-sentence solutionEasy (30): ≤3-sentence solution
DROP — 100 samples
Hard (50): numeric + arithmetic / long passageEasy (20): numeric, no keywordsSpans (30): extractive
GPQA Diamond — 100 samples
3 subjects, sorted by lengthHard ~70% / Easy ~30% per subject
MMLU — 100 samples
18 subjects, weighted toward harder ones (e.g. law, genetics)
MATH — 100 samples
7 subjectsHard (10/subject): Level 4–5Easy (4/subject): Level 1–2
SWE-bench & GAIA — 20 samples each
Randomly selected

Baseline scores

Same evaluation protocol as Magentic-One's original benchmarks, re-run on our frozen MiniMax-M2.7 baseline — the row every strategy below is measured against.

BenchmarkScore
GSM8K95.0
MATH64.3
MMLU86.8
GPQA21.2
DROP71.0
SWE-Bench55.0
GAIA30.0

Strategy 1 — memory from experience

A finished run gets compiled into a compact, structured summary — not the raw dialogue log — and stored in a memory base. The manager retrieves the top-k most relevant summaries into its planning context on future runs. Agents, tools, and the base model stay completely frozen; only the manager's planning context changes.

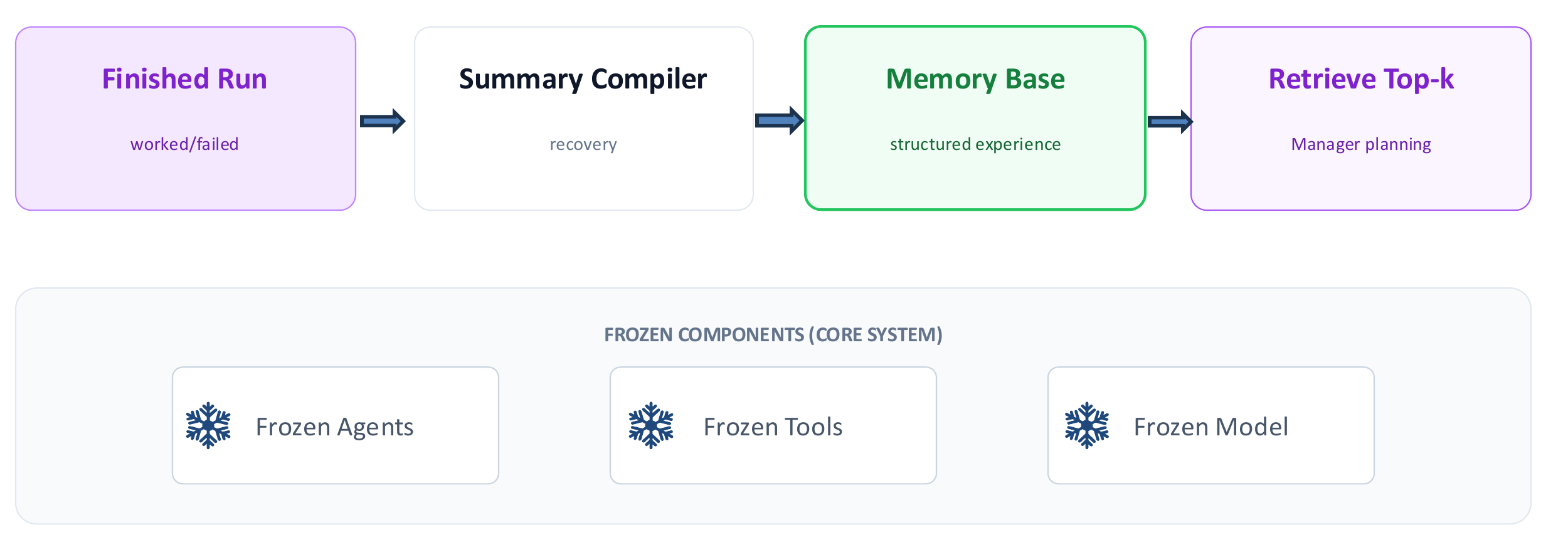

Strategy 1 flow: a finished run (worked or failed) feeds a summary compiler for recovery, which writes structured experience into a memory base, which the manager retrieves top-k from for planning. Frozen components: agents, tools, model.
Only a memory layer is added around the manager's planning context — agents, tools, and model stay frozen.

Verified before measuring

Before trusting any performance number, the mechanism itself was checked end-to-end: memory gets compiled, stored, retrieved, and injected in the real manager loop, not just in isolated unit tests.

11/11 unit tests passed
Store, compiler, retriever
1.00 retrieval P@1
Same-family accuracy
Real LLM loop, end to end
Disabled state matches stock baseline exactly

Relevant memory improves success

On a SWE-bench slice, applying relevant memory took end-task success from 25% to 100% — while also cutting retries (2.58 → 1.00 steps/task) and cost (2372 → 1285 tokens/task).

ConditionSuccessRoutingTokens
C0 (baseline)25%17%2372
Random memory79%71%1929
S1 summary100%100%1285
Raw dialogue log100%88%2777
C0
25%
Random
79%
S1 summary
100%
Raw log
100%
The ablation that mattered: relevance alone isn't enough (random context only reaches 54–79% success — proves more context isn't the point, relevant context is), and safety needs a gate — disabling the relevance filter out-of-distribution dropped success from 100% back to 50%, restored to 100% once the gate was reinstated. Compressed summaries also matched raw logs on success at under half the tokens (1,285 vs. 2,777).

Strategy 1 vs. baseline

BenchmarkBaselineStrategy 1
GSM8K95.0100
MATH64.365.0
MMLU86.890.0
GPQA21.245.0
DROP71.090.0
SWE-Bench55.050.0
GAIA30.036.8

Best gain: GPQA +23.8. Largest drop: SWE-bench −5.0.

Strategy 2 — tool & skill library

The framing borrows from cognitive science: semantic memory (facts) maps to RAG, episodic memory (experience) maps to interaction logs — Strategy 1's territory — and procedural memory (skills, "how to do things") maps to an executable skill library, a folder of markdown files each describing when to use a skill, its workflow, its tools, and its output format.

PurposeWhen to useInputsWorkflowTools / scriptsConstraintsExamplesOutput format

Definitions

  1. Tool. An external function, API, or program an agent calls for one specific operation beyond its native reasoning.
  2. Skill. A reusable, higher-level capability packaging instructions, tool usage, workflow logic, and success criteria for a whole class of tasks.

How it evolves

Retrieve an active skill → execute → fall back to normal agents if it fails → the Skill Librarian decides noop / refine / create → tests and critic gate activation.

01
Retrieve
Active skill by task type, tags, context keys.
02
Execute
Run the retrieved skill against the task.
03
Fallback
Normal agents solve it if the skill fails or doesn't apply.
04
Decide
Skill Librarian: noop, refine, or create a new skill.
05
Gate
Tests + critic score ≥ 0.8 before activation.

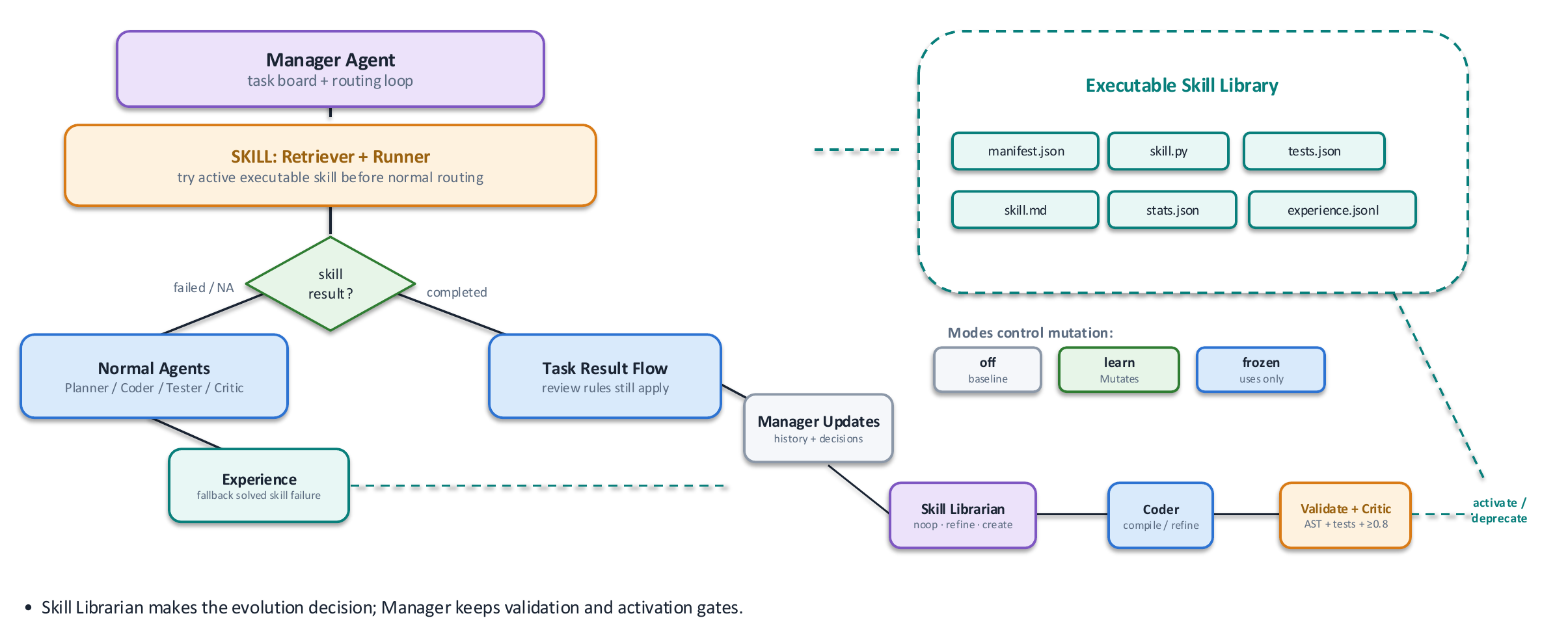

Strategy 2 flow: Manager Agent tries an active executable skill via a Retriever + Runner before normal routing; failed or N/A results fall back to normal agents (planner/coder/tester/critic); completed results and fallback experience feed a Skill Librarian (noop/refine/create), which a Coder compiles and a Validate+Critic step gates (AST + tests + score ≥0.8) before activating or deprecating it in the Executable Skill Library (manifest.json, skill.py, tests.json, skill.md, stats.json, experience.jsonl)
Only the project-local skill library evolves — manager, agents, tools, and base model stay frozen.

This builds on a line of prior work: agents that generate and cache reusable tool code (LATM, Cai et al. 2023), that separate abstract skill creation from concrete execution (CREATOR, Qian et al. 2023), that refine executable skills over a lifetime of tasks (Voyager, Wang et al. 2023), and that manage a skill's full lifecycle — create, remember, evaluate, refine, transfer (MUSE-Autoskill, Lin et al. 2026).

Strategy 2 vs. baseline

BenchmarkBaselineStrategy 2
GSM8K95.0100
MATH64.369.4
MMLU86.883.9
GPQA21.230.6
DROP71.071.0
SWE-Bench55.055.0
GAIA30.040.0

Best gain: GAIA +10.0. Largest drop: MMLU −2.9.

Strategy 3 — RL puppeteer over routing

A small trainable policy head (~0.9M params, a 3-layer MLP over a frozen text-encoder embedding of the current state) sits at exactly one seam: after the frozen manager proposes which agent should act next, the head decides whether to keep that pick or override it. Everything else — the manager loop, the 8 agents, the base model — stays frozen; this is the only part that learns.

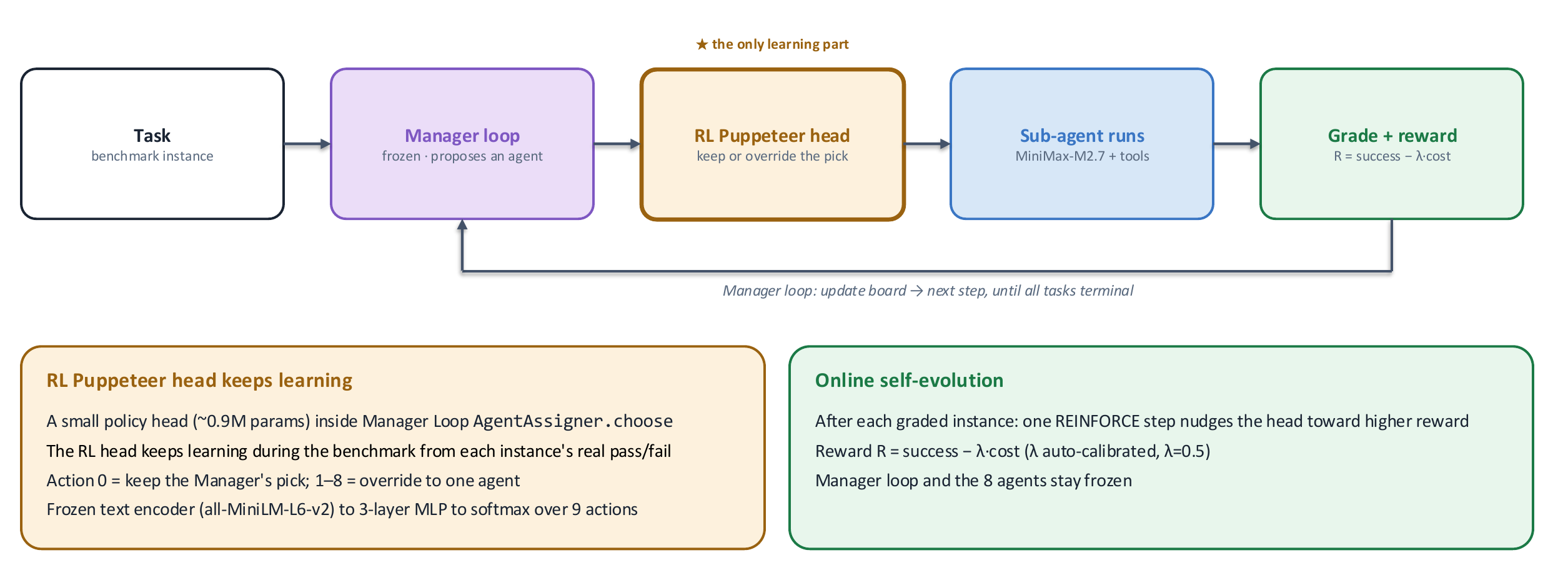

Strategy 3 flow: a benchmark task goes through the frozen manager loop, which proposes an agent; the RL puppeteer head (the only learning part) decides to keep or override the pick; the chosen sub-agent runs on MiniMax-M2.7 + tools; the result is graded with reward R = success minus lambda times cost; the manager loop updates its board and moves to the next step until all tasks are terminal
One trainable seam — keep or override the manager's agent pick — everything else stays frozen.

It learns online: after every graded instance, one REINFORCE update (with an EMA baseline) nudges the head toward whatever choice beat its running average reward, where reward is R = success − λ·cost, λ auto-calibrated from the observed median cost.

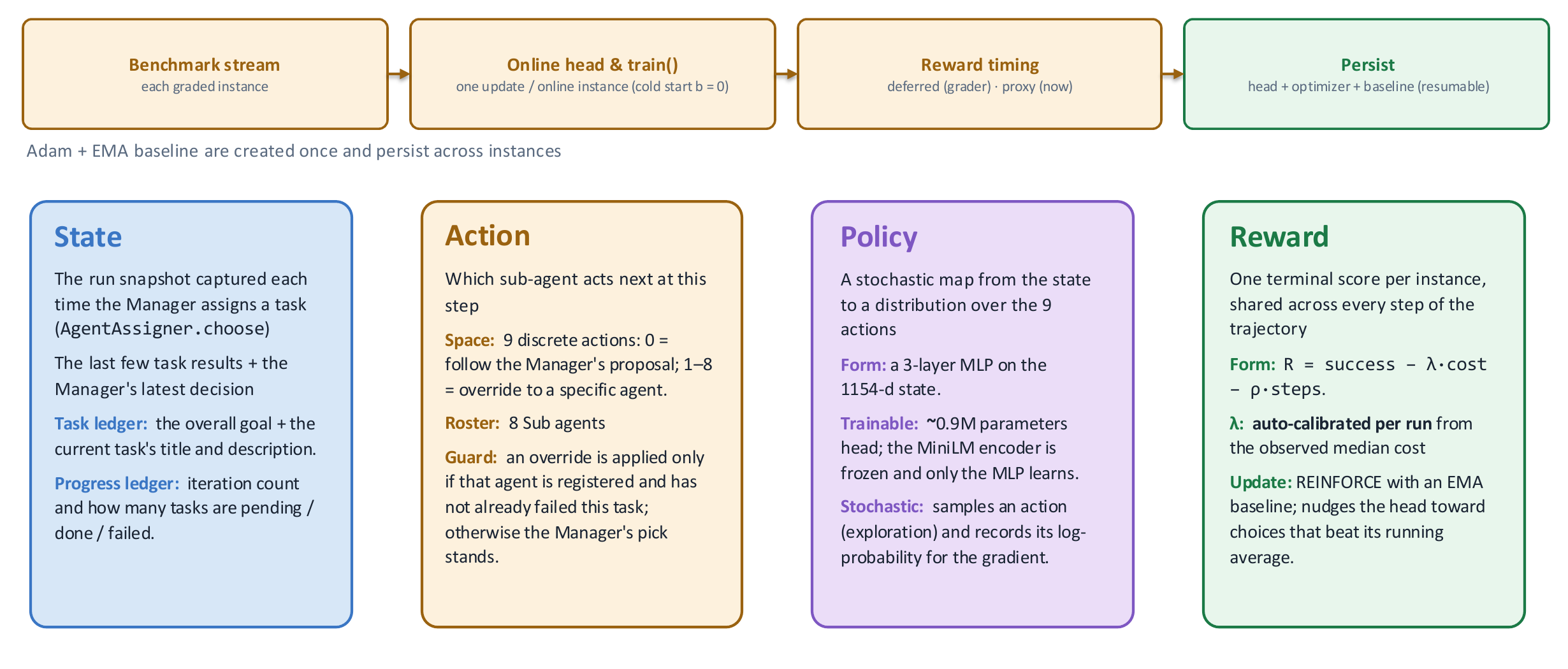

Four definition cards: State (the run snapshot at each agent assignment — task ledger goal/description, progress ledger iteration count, last few results); Action (9 discrete choices — 0 = follow manager's proposal, 1-8 = override to a specific agent, guarded so an override only applies to a registered, not-yet-failed agent); Policy (a stochastic 3-layer MLP over a 1154-dimension state, ~0.9M trainable parameters, frozen MiniLM text encoder); Reward (one terminal score per instance, R = success minus lambda times cost minus rho times steps, updated via REINFORCE with an EMA baseline)
State, action, policy, and reward for the one seam that learns.

Online self-evolution, benchmark by benchmark

Base capability lands between 59–91% (GSM8K 91, MMLU 66, DROP 61, GPQA 60, MATH 59). The clearest online-learning signal is on DROP (+18% trend) — benchmarks already near ceiling (GSM8K, MMLU, GPQA) stay flat, within noise, since there's little headroom left to climb on a binary success signal. MATH's −22% trend is more likely instance-ordering (harder tasks arriving later in the stream) than genuine policy decay.

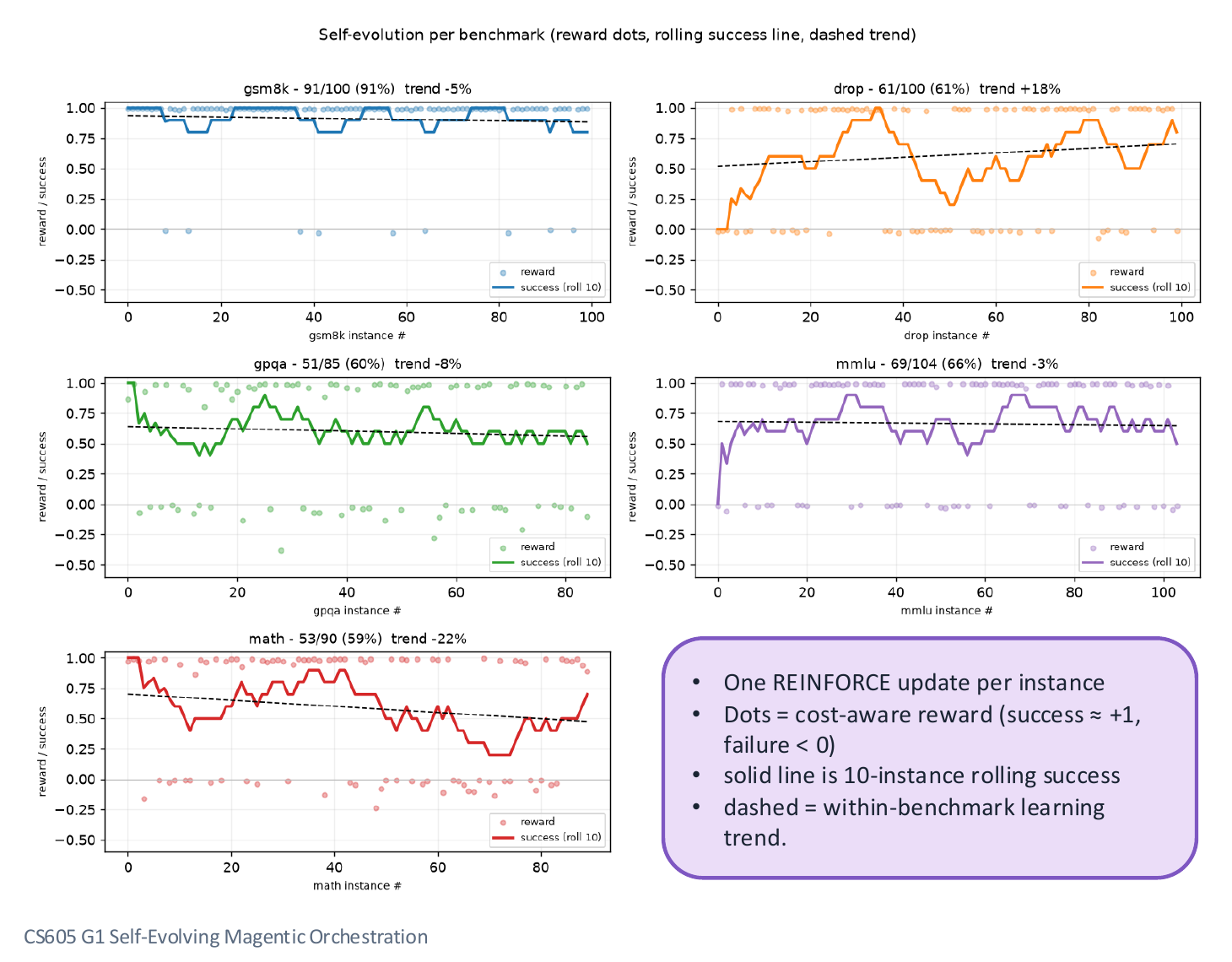

Five scatter-and-rolling-success charts, one per reasoning benchmark (gsm8k 91/100 trend -5%, drop 61/100 trend +18%, gpqa 51/85 trend -8%, mmlu 69/104 trend -3%, math 53/90 trend -22%), each showing per-instance cost-aware reward dots, a 10-instance rolling success line, and a dashed within-benchmark learning trend, with one REINFORCE update per instance
Per-instance reward, 10-instance rolling success, and the learning trend line, across all five reasoning benchmarks.

Strategy 3 vs. baseline

BenchmarkBaselineStrategy 3
GSM8K95.097.0
MATH64.358.9
MMLU86.866.3
GPQA21.260.0
DROP71.061.0
SWE-Bench55.050.0
GAIA30.042.1

Best gain: GPQA +38.8 — the single largest gain of any strategy on any benchmark. Largest drop: MMLU −20.5.

Combined strategy

All three strategies layered onto the same frozen manager loop: try an active executable skill first (score ≥ 60), otherwise route through an experience-enriched planning prompt, then let the RL head optionally re-route the pick. Manager, agents, tools, and base model stay frozen throughout — S1's experience base, S2's skill library, and S3's policy head are the only three moving parts.

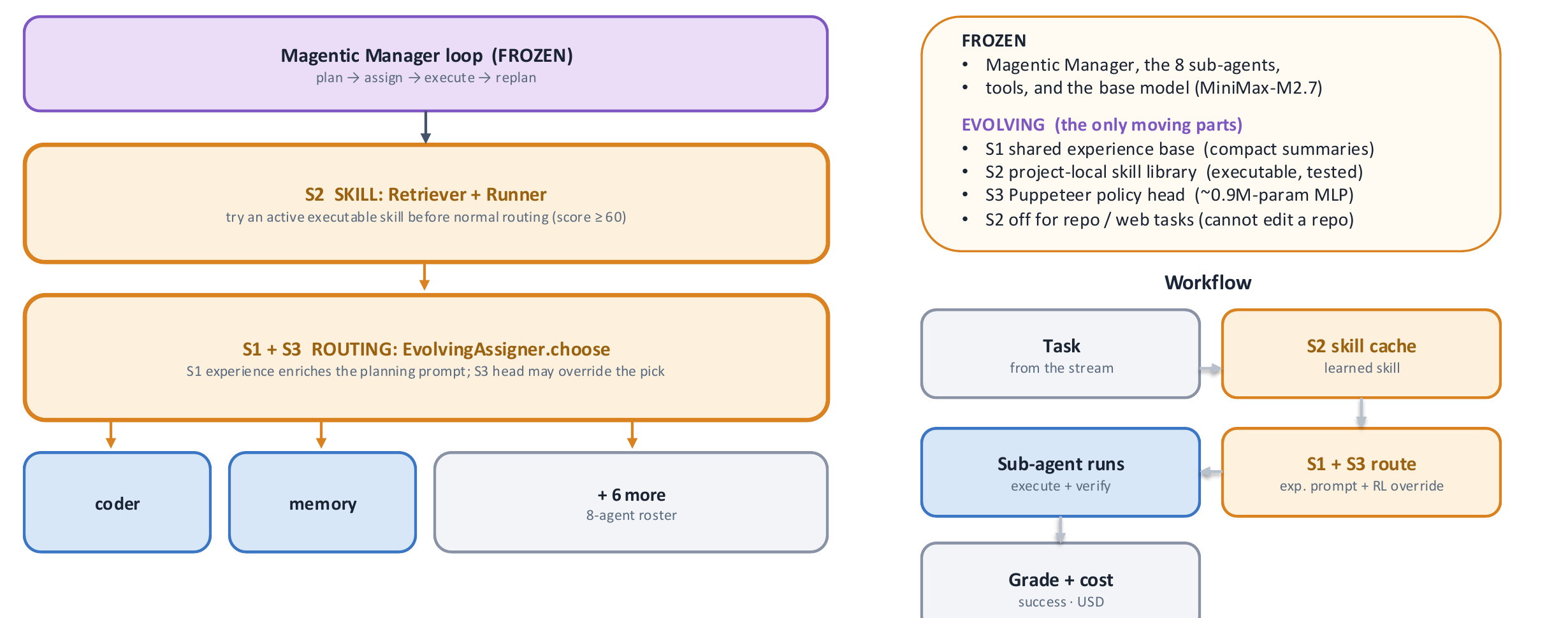

Combined strategy flow: frozen Magentic Manager loop feeds an S2 skill retriever+runner, then S1+S3 routing (EvolvingAssigner.choose, where S1 experience enriches the planning prompt and the S3 head may override the pick), then out to the 8-agent roster (coder, memory, +6 more). Frozen: manager, 8 sub-agents, tools, base model. Evolving: S1 shared experience base, S2 project-local skill library, S3 puppeteer policy head. Note: S2 is off for repo/web tasks since it cannot edit a repo. Workflow: task from the stream, S2 skill cache, S1+S3 route, sub-agent runs execute+verify, grade+cost.
Skill first, then experience-enriched routing, then optional RL override — three evolving parts on one frozen loop.

On a 20-task GAIA subset, the learned baseline climbs from a cold start of 0 to a peak ≈ 0.42, then tracks the run's true ~31% solve rate — and critically, it persists: resuming in a fresh process picks up at b ≈ 0.31, not back at 0, because the head's weights, optimizer, and baseline are checkpointed. Solve rate rose from 25% in the first half of the run to 38% in the second.

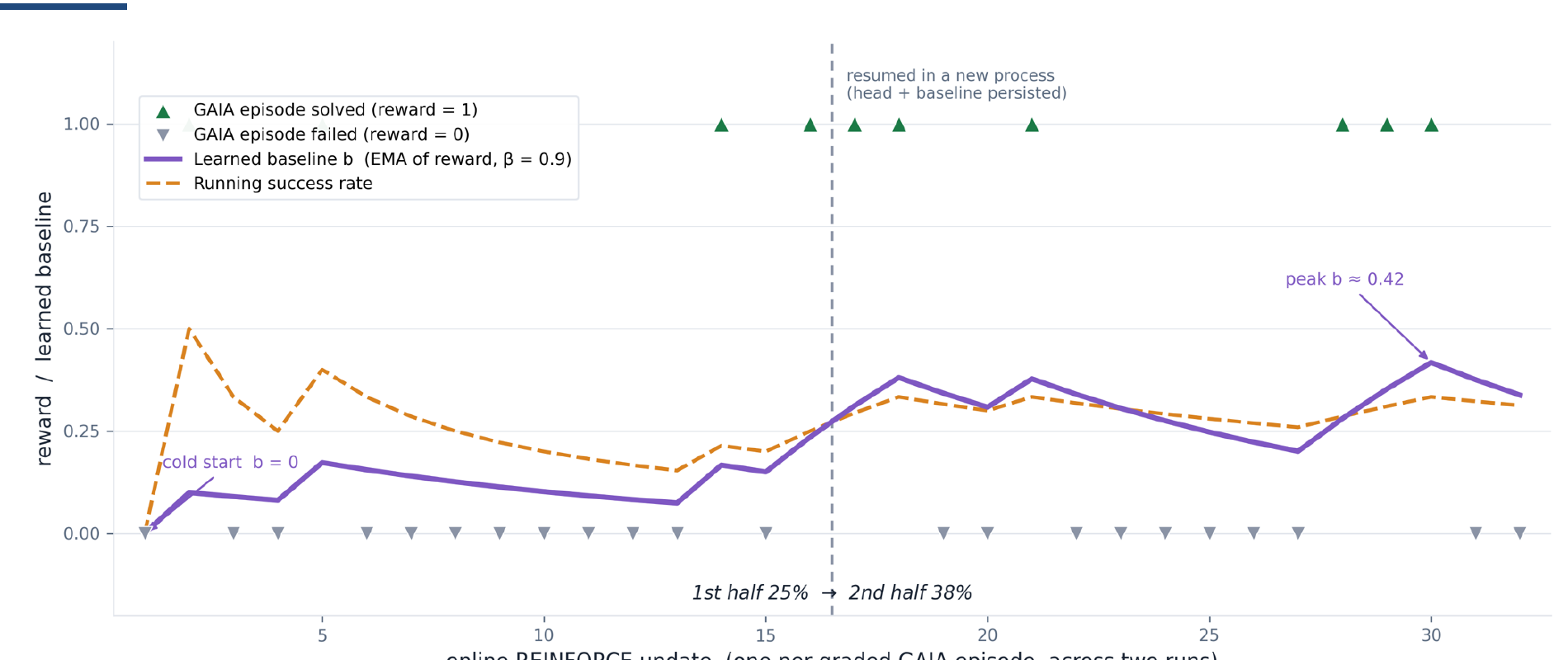

Line chart: reward and learned baseline b over 32 online REINFORCE updates on a GAIA 20-task subset across two runs. b climbs from a cold start of 0 to a peak of approximately 0.42, tracking the running success rate. A vertical line marks where the process resumed in a new run, with the head and baseline persisted rather than reset — resuming at b approximately 0.31. Solve rate rises from 25% in the first half to 38% in the second half.
Self-evolution persists across separate runs — the head resumes from its checkpoint, not from zero.

Combined vs. baseline

BenchmarkBaselineCombined
GSM8K95.099.0
MATH64.355.1
MMLU86.871.0
GPQA21.225.9
DROP71.074.0
SWE-Bench55.055.0
GAIA30.037.5

Best gain: GAIA +7.5. Largest drop: MMLU −15.8.

Overall results

Splitting the seven benchmarks into single-pass reasoning (GSM8K, MATH, MMLU, DROP, GPQA) and multi-step execution (SWE-bench, GAIA) makes the pattern clear: every strategy's story is different depending on which kind of task it's facing.

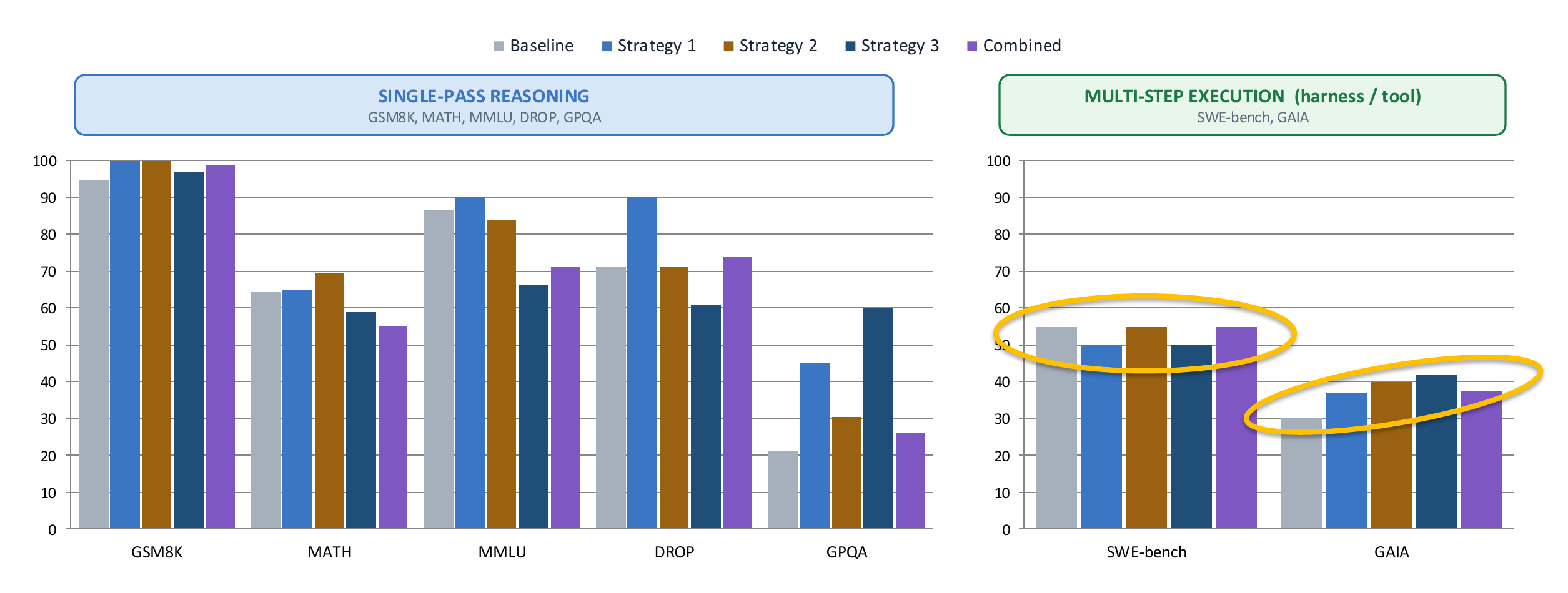

Two grouped bar charts comparing Baseline, Strategy 1, Strategy 2, Strategy 3, and Combined. Left panel, single-pass reasoning (GSM8K, MATH, MMLU, DROP, GPQA): Strategy 1 and 2 lead on most benchmarks, Strategy 3 and Combined lag on MMLU and MATH. Right panel, multi-step execution (SWE-bench, GAIA): all strategies roughly match or exceed baseline on SWE-bench, and Strategy 3 leads on GAIA followed by Combined and Strategy 2, all well above baseline.
Single-pass reasoning rewards memory and skills; multi-step execution rewards changing who acts next.
BenchmarkBaselineS1S2S3Combined
GSM8K95.010010097.099.0
MATH64.365.069.458.955.1
MMLU86.890.083.966.371.0
GPQA21.245.030.660.025.9
DROP71.090.071.061.074.0
SWE-Bench55.050.055.050.055.0
GAIA30.036.840.042.137.5

Mechanism vs. adaptivity trade-off

StrategyWhat it changesWhere it helpsTrade-off
S1 MemoryCompiles past-task summaries into the planning prompt; solver & routing unchangedReasoning, broadly (DROP +19, GPQA +24, MMLU +3)Almost none (SWE-bench −5)
S2 SkillsRuns a learned skill (score ≥60) before routing; ≤1 new skill/runReusable compute patterns (GSM8K +5, MATH +5, GAIA +10)Narrow (MMLU −3; flat DROP & SWE-bench)
S3 RL routingTrained head overrides the sub-agent pick each step, learning onlineMulti-step execution (GAIA +12, best of any strategy)Heavy reasoning tax (MMLU −20, DROP −10, MATH −5)
CombinedAll three on one frozen manager: skill first, then enriched prompt, then optional re-routeExecution peak (DROP +3, GPQA +4, GAIA +7.5)Inherits S3's tax (MMLU −16, MATH −9)
Adaptivity comes as a trade-off: enriching context (S1) is the low-risk, general win. Skills (S2) help only where a reusable pattern actually exists. Changing who executes (S3) trades single-pass reasoning for multi-step execution — it isn't free, it's a different bet.

Key takeaways

  1. Memory is the cheapest, most general self-evolution strategy. It improves reasoning broadly with almost no downside.
  2. Adaptivity is a trade-off, not a free upgrade. RL routing drives the largest agentic/tool gains (GAIA +12.1, best of all conditions) but taxes single-pass reasoning (MMLU −20).
  3. Combining strategies is targeted, not universally better. The combined stack tops the agentic benchmark yet still inherits the reasoning tax that comes with changing who executes.
  4. What's next. Scaling the benchmark set and reporting confidence intervals, and trying ensemble methods to find the best self-evolving combination rather than a single fixed recipe.

Stack

Multi-agent orchestration LangChain Reinforcement learning (REINFORCE) Retrieval-augmented memory Executable skill library Benchmark evaluation
